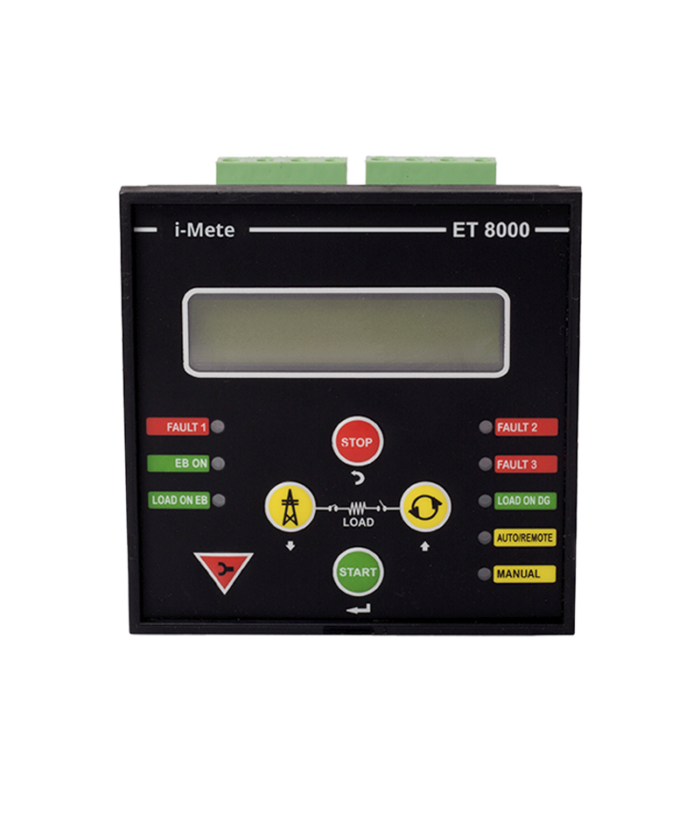

ET 8000
- 96 x 96 x 52 mm
- IP 52 front, IP20 rear, 92 x 92 mm, Mounted
- Supply Voltage & Current: 8 V to 30 V DC. Nominal 12/24 V Automotive / Nominal 50mA
- 0V DC/Common, Reverse voltage, 120V load dump
- Mains Voltage Input Range: 60-300 Volts RMS. Short duration overload capability 350V
- Generator Voltage Input Range: 60-300 Volts RMS Short duration overload capability 350V
- Mains Under/Over Frequency: Under Frequency = 40Hz, Over Frequency =70 Hz
- Output OP1 to OP5: Relay Coil Driver Open drain current limited 30V 300mA
- Generator Under/Over Frequency: Under Frequency =40Hz, Over Frequency =70 Hz
- Output protection: Short circuit, reverse voltage, load dump, inductive relay currents
- Amp DUAC / Molex Mini Fit JNR
- Operating / Storage Temperature: -10 to 70°C / -20 to 70°C
